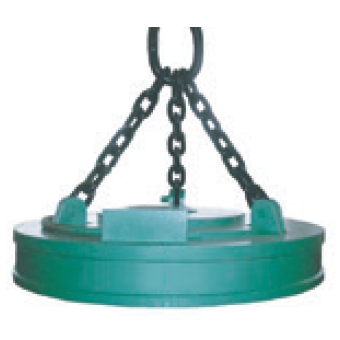

Series LE05 - Lifting Electromagnet For Handling Steel Scraps

Suitable for lifting and transporting cast ingot, steel ball, pig iron, mechanical chip, various kinds of steel scraps, return scraps, cropping, baling scraps and etc. Suitable for removing large irons in advance in slag disposal process and lifting and transporting iron powder in the coal washer. Two chamber type outlet box with particular extra-thick outlet box fender and anti-twist setting for outlet cables.

*Complete set of Scrap Lifting Electromagnet
-Lifting Electromagnet
-Control Cabinet (rectifier cabinet or battery back-up cabinet)
-Cable Reel (with cable)
-Cable Connector

Feature:
1. LE05 high-temperature type scrap lifting electromagnet adopts a special design magnetic circuit which has high magnetic density. It is made of aluminum wire and the coil protection plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption, high lifting capacity and long serving life.
2. LE05 high-temperature type scrap lifting electromagnet has fine insulation structure. High-temperature type electromagnet adopts a unique method of heat protection, the temperature of the attached materials is increased from 600 ° C to 650 ° C, which expands application range of the electromagnet.
3. With simple structure and reliability, it is suitable for working with all kinds of lifting equipment.

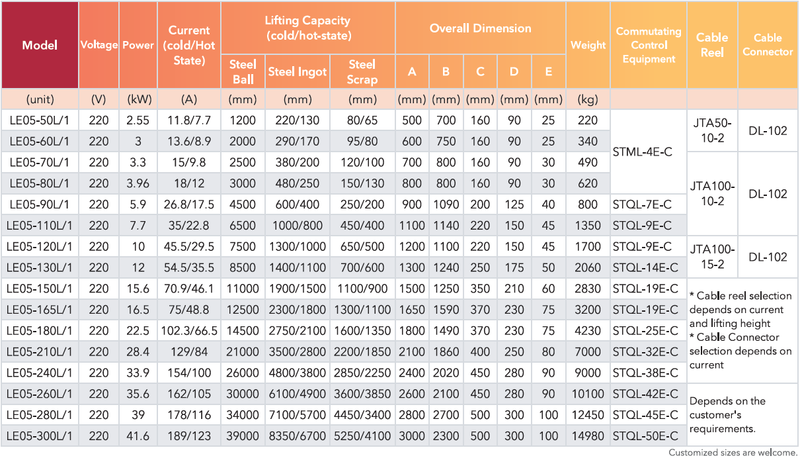

Series LE05 - Normal Temperature Type

*Note: Technical data of diving type is the same as that of normal type. While some special technology like outlet box and welding process will be coped differently. The length of cable depends on customers’ requirement.

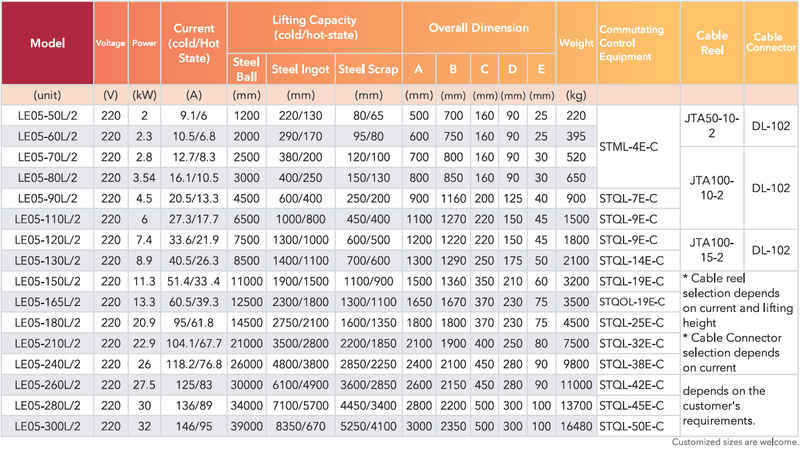

Series LE05 - High Temperature Type

Feature:
1. LE05 high-temperature type scrap lifting electromagnet adopts a special design magnetic circuit which has high magnetic density. It is made of aluminum wire and the coil protection plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption, high lifting capacity and long serving life.
2. LE05 high-temperature type scrap lifting electromagnet has fine insulation structure. High-temperature type electromagnet adopts a unique method of heat protection, the temperature of the attached materials is increased from 600 ° C to 650 ° C, which expands application range of the electromagnet.
3. With simple structure and reliability, it is suitable for working with all kinds of lifting equipment.

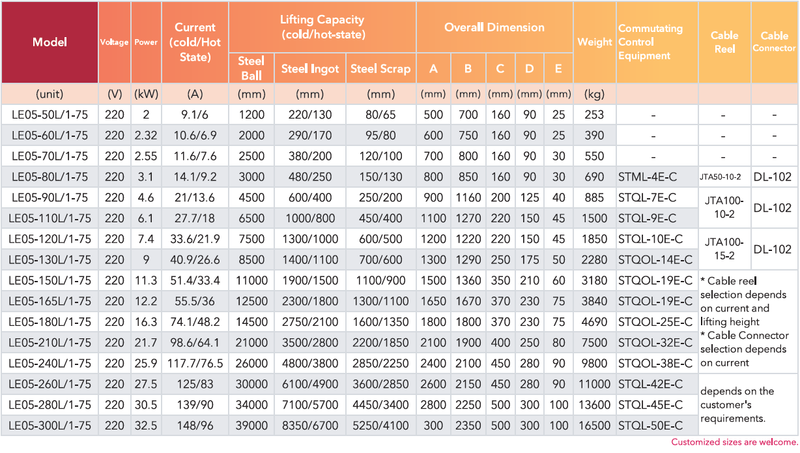

Series LE05 - High Frequency Type

Series LE05 - Strong magnetic Type

For the large capacity melting furnace, loading and unloading light scrap frequently, a large strong magnet type electromagnet has been developed through innovation by us, the magnetic attraction of which is 40% higher than normal type. They are especially suitable for feed process of the electric steel-making. The products have already widely applied in various steel companies with good feedback.
