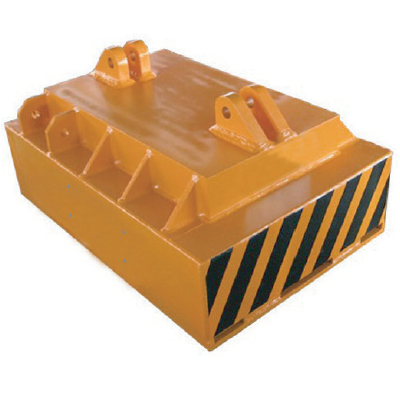

Series LE92 Electromagnet For Handling Square Billets, Beam Billets, Plate Billets

Super-high temperature type can be supplied with water cooling, that is: After several times of lifting, the attraction of the electromagnet decreases clearly, at that time, the electromagnet shall be lifted into the cold water pool for several minutes, then to lift and transport again, called high temperature diving type electromagnet. It adopts special manufacturing process and smart heat dispersion structure to ensure the welding line never splits and the coil never suffers water-in.

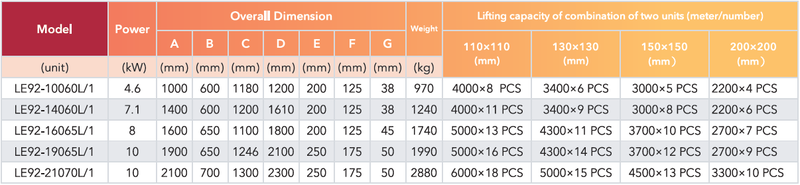

Series LE92 - Normal Temperature Type

*Rated voltage DC-220V, duty cycle TD-60%

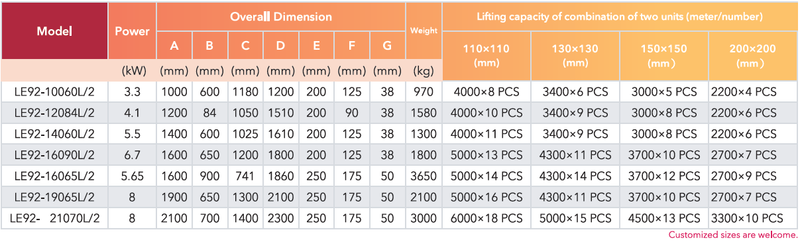

Series LE92 - High Temperature Type

*Rated voltage DC-220V, duty cycle TD-60%
