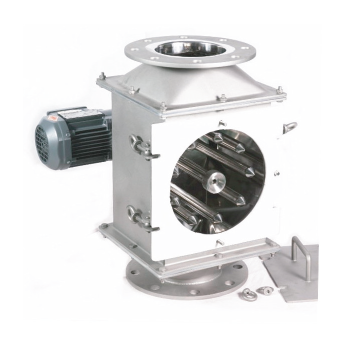

Rotary Magnetic Separator

Working principle:
Rotary magnetic separator consists by a cyclic magnetic grate and a housing outside. A motor is necessary to drive the magnetic grate rotating. Rotary magnetic separator is used to remove the ferrous contaminants from the material that is apt to caking and bridging.
Feature:
These materials, like power with high moisture, which is certain viscous, are easy to cake if use fixed magnetic separators. However, the rotary action will scatter the material and make more contaminants attracted on the rods. This unit embodies unapproachable capacity compares to other fixed separator.
