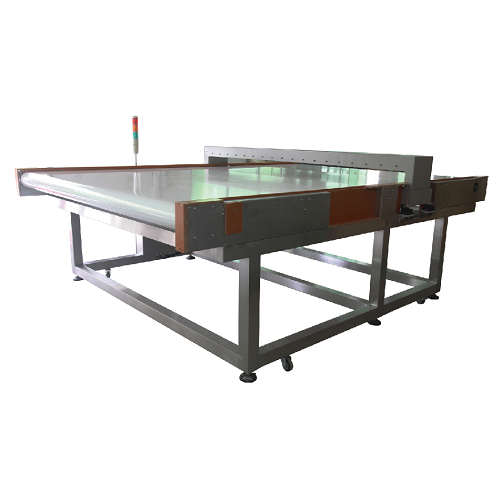

Specifications:
The series of THMD adopted advanced technique of electrical and mechanism designs, which have reasonable structure ,beautiful appearance, high sensitivity and stable behaviors.Scope Of Application:
Mainly used for detecting ferrous metal that load or drop in raw materials and products in the field of toy, costume, shoemaking, chemical industry, leather, knitting, etc.Functions:
1. high sensitivity and strong interference immunity.
2. light structure and move conveniently.
3. various of specifications of inspection window which can be chosen according to customers' needs.
4. quick conveying speed, applicable to pipeline operation.
5. matches the pipeline operation or automatic control device.Correlation parameter:
Normal height of inspection window（100-200mm)
Normal width of inspection window（500mm)
Electrical source: 220V 50Hz.
Power: 180W.
Sensitivity-Diameter of steel ball(mm): Φ1.0-1.5.
Alarm: Audible and visual automatic stop.
Size: 3300(L)×12600(W)×1200(H)mm.
THMD-ND Needle Detector
