The small diameter round electromagnet is suitable for lifting and transporting the single piece of thin plate and long plate. It can handle 1 piece of plate at one time and subsidiary transporting for the cutting machine and welding operation. It can do feeding operation for all kinds of machines, such as a caster. It can be used as magnetic tongs, magnetic hands, magnetic clamping device on mechanical equipment, which can attract small material.

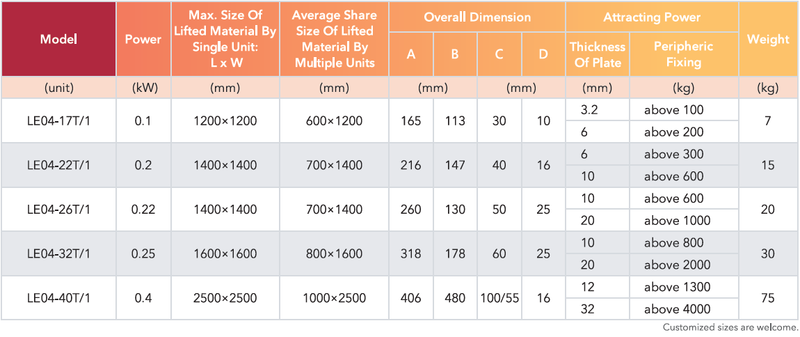

When selecting the model, please pay attention to the plate thickness, width, length and weight.

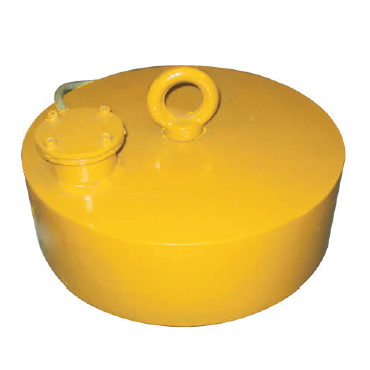

Series LE04 - Lifting Electromagnet For Handling Steel Plates
*Rated voltage DC-110V, duty cycle TD-60%
