The electromagnet adopts “┍┑”type magnetic circuit, two thread stitch structure, with good property of heat dispersion and the farther permeability depth, which can penetrate several layers of air-space lift and transport bar, flat iron or angle iron unbundled or simply bundled. There are normal temperature type and high-temperature type.

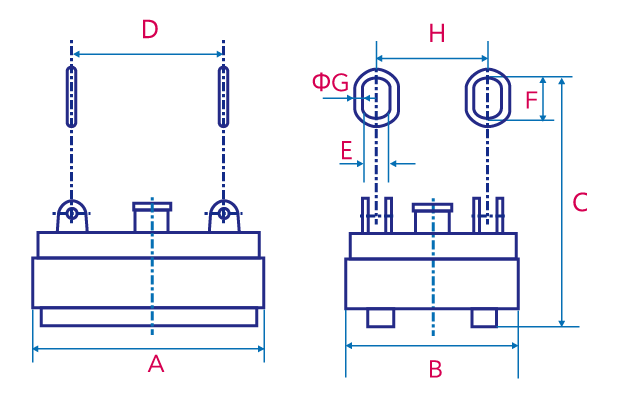

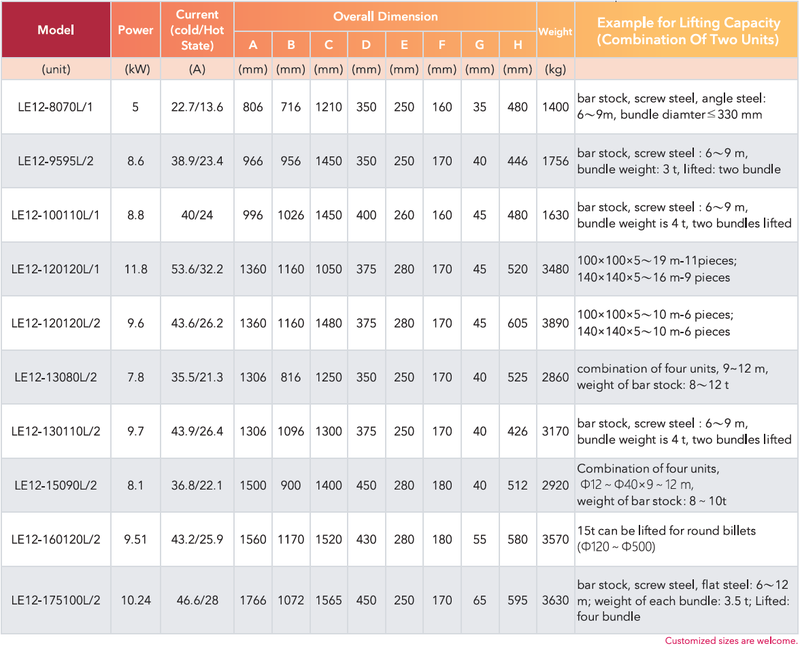

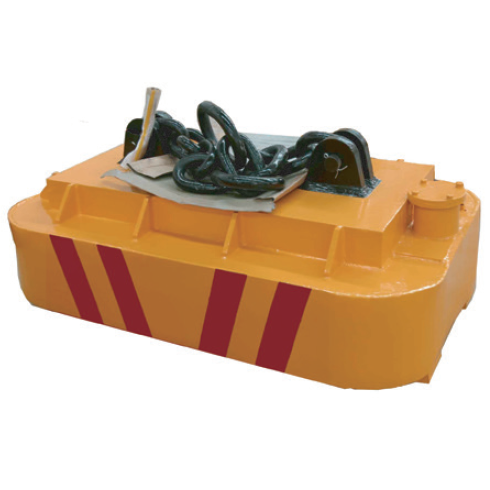

Series LE12 - Lifting Electromagnet For Handling Square Billets, Beam Billets, Plate Billets
*Rated voltage DC-220V, duty cycle TD-60%
