Scope of application:
THMD-360 is mainly used for detecting the metal chips inside any food, for meat & poultry, sea-food, fishery, ice cream, frozen food, sugar, tea, pharmaceutical, health care products and other industrial fields.

Product characteristic:
1. Phase tracking function, which can maintain the stable high-sensitivity detection ability.
2. Product tracking function, which can do adjustment and compensation according to the changes of the product effect automatically.
3. Auto-balanced calibration function, which can ensure the service life of the machine.
4. Applying high functional FPGA, plan with Single Chip Machine.
5. Stainless steel mirror surface, easy design.
6. Above 52 products can be restored in product database.
7. IP66 dust and water proof.
8. The performance of the conveyor belt is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
9. Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference, the equipment won’t miss alarm even when you tap the probe.

Parameters:
1. DSP signal processing technology.
2. Designed with a special seal, waterproof and dustproof to IP66.
3. Conveyor speed of 10 to 40 m / min (adjustable).
4. Alarm: buzzer / warning lights.
5. Rejector: push rod type, chute type etc., option accessory.
6. Electronic source: AC110V/220V/380V,50/60Hz,power:90/120W.

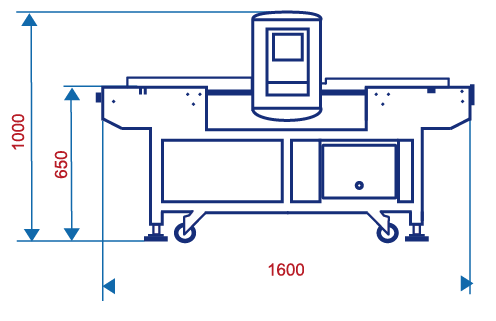

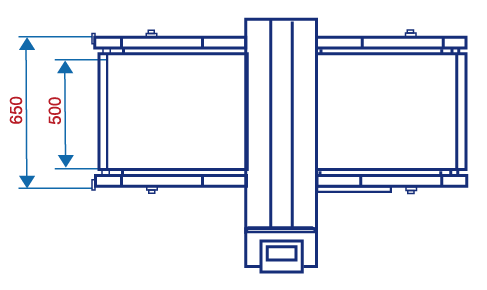

7. Normal Size (mm): 1740(L) X 900(W) X1030(H).
8. Gross Weight: approx. 390kgs Net Weight: Around 350kgs.

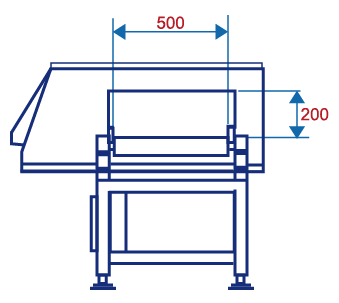

＊Detection window size customized per your demands.
