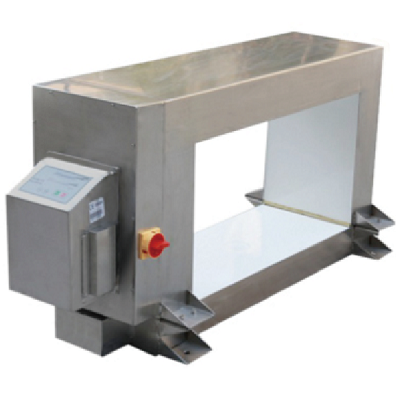

The electronic and mechanism design of the series of THMD auto-conveying metal detector is adopted advanced technique in the world, the design is suitable and the appearance is beautiful THMD-14 owns the ability of high sensitivity and stable behavior.
Scope of application:
THMD-14 is mainly used for detecting the metal chips inside the sea-food , fishery, noodle, frozen food, , sugar, tea, pharmaceutical products etc.

Product characteristic :
1. Stainless steel shell , anti-erosion and long life span .
2. The conveyor belt is made of nonpoisonous material.
3. Strong transport drive, all the products below 25kg can be conveyed to be checked.
4. Quick convey speed, it is specially suitable for pipeline operation.
5. When sensor detect a broken needle or over a diameter 0.8mm iron ball, buzzer will sound and conveyor belt will stop. After that, detected products will be return at hand.
6. The performance of the belt conveyer is complied with the American food sanitation standard (FDA), it can be used for transporting the unpacked food directly.
7. Can match the pipeline operation or automatic control device.

Technical parameters:

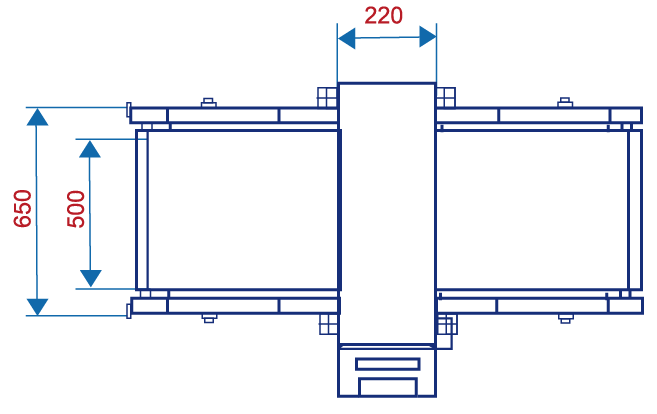

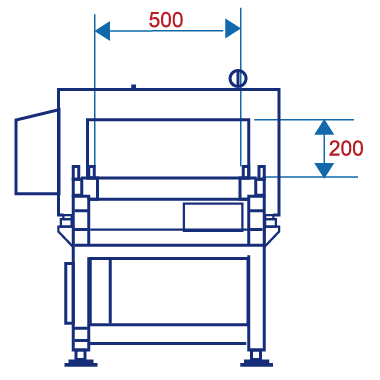

1. Inspection window size:
Normal height of inspection window(mm): 120.
Normal width of inspection window(mm): 500.
The measures of the inspection window which can be designed according customer’s requirement.
2. Sensitivity: Diameter of 0.8 mm steel ball, weight of 1.2-1.5g Lead, copper and other globular metal parts.
3. Electrical source: 220V 50 Hz.
4. Power : 120 W.
5. Alarm: Audible and visual alarm, automatic stop.

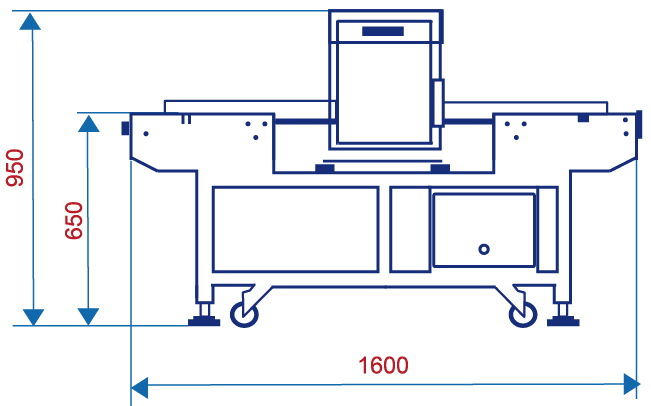

6. Normal Size(mm): 1740(L)X900(W)X1030(H).
7. Gross Weight: approx. 370 kgs Net Weight: Around 310 kgs.
