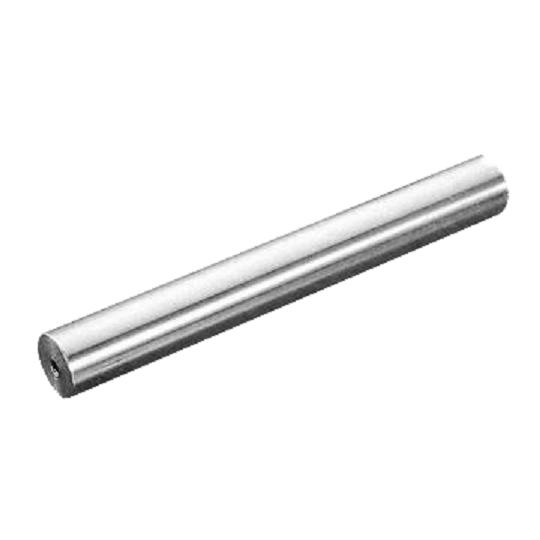

Magnetic Bar

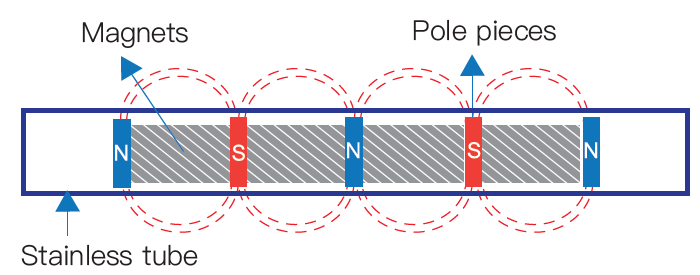

Magnetic bar is constructed by strong permanent magnet and stainless steel shell. Either round or square shape bars are available for customers' requirements for special applications. Magnetic Bar is used for removing ferrous contaminants from free flowing material. All the ferrous particles like bolts, nuts, chips, damaging tramp iron can be caught and held effectively. So it provides a good solution of material purity and equipment protection.

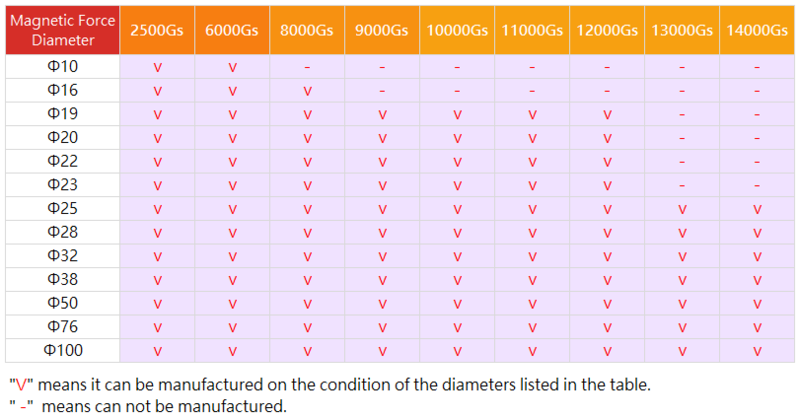

  • “P” means it can be manufactured on the condition of the diameters listed in the table.
  • “-” means can not be manufactured.

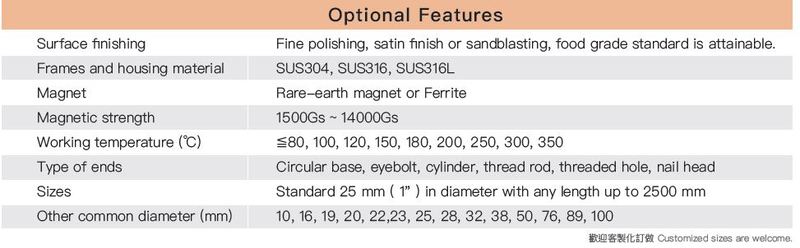

  • The related max. working temperature from different series.
  • H series: 120℃
  • SH series: 150℃
  • UH series: 180℃
  • EH series: 200℃

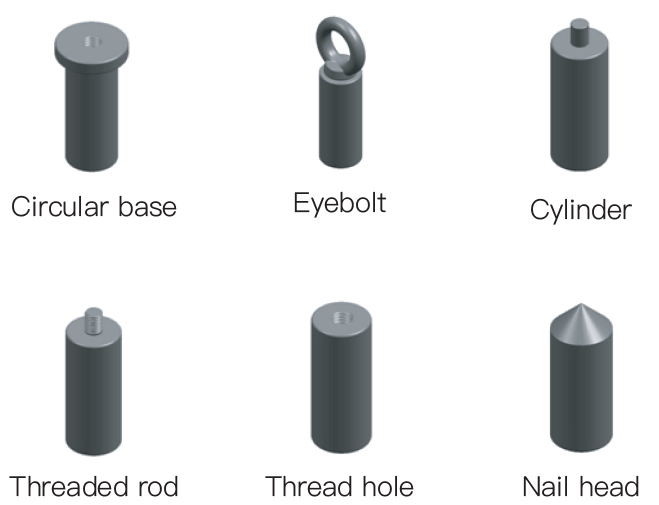

Type of ends
