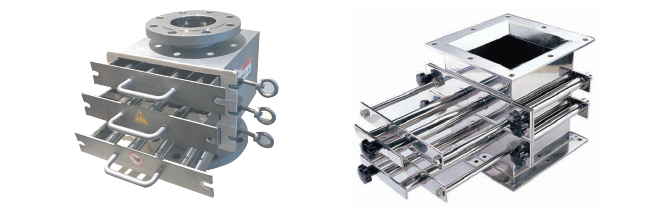

Magnetic Drawer



Magnetic drawer is constructed by a group of magnetic grates and housing. It would be one layer or multiple layers inside the housing which depends on the material condition. Usually, it is installed into the pipeline.
Magnetic drawer is ideal for removing medium and fine ferrous contaminants from a range of dry free-flowing products. They are widely used in food industry and chemical industry. Magnetic bars inside housing emit high magnetic field across the gaps between them. When material flows into the top of the housing, it is forced to cascade in a zig-zag pattern from row to row over the magnetic tubes, which ensures maximum tramp metal be captured since the product comes in direct and repeated contact with a magnet as it passes through the housing.

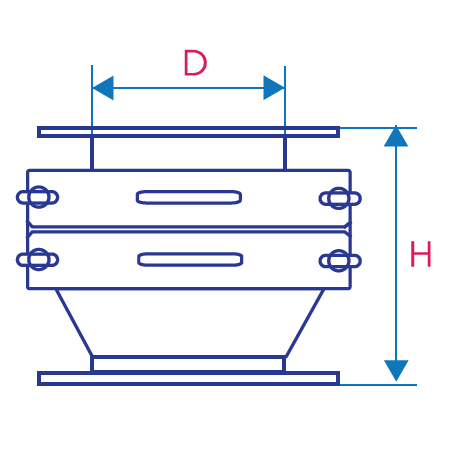

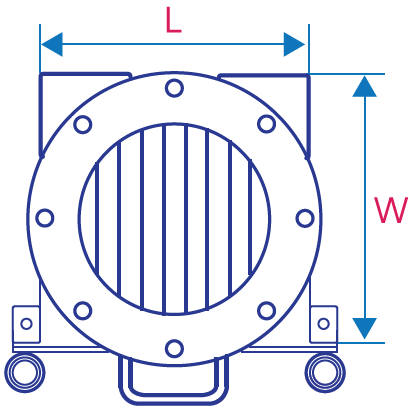

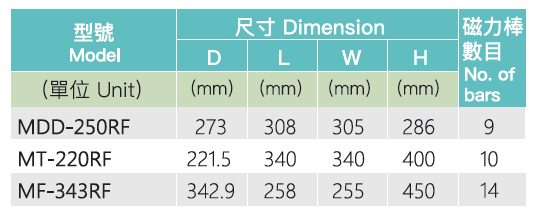

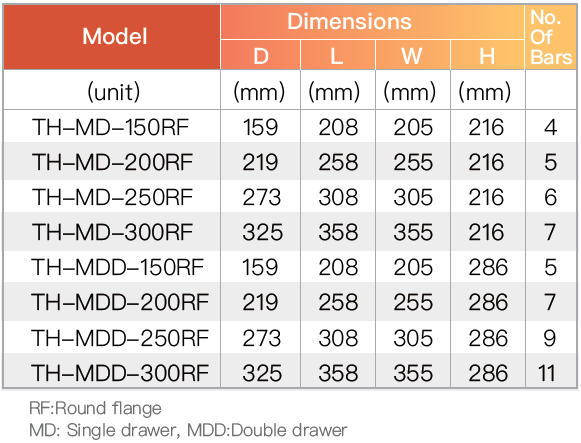

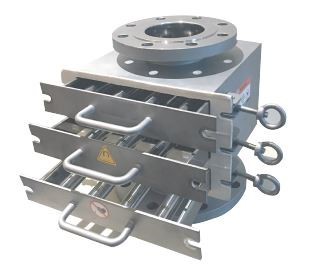

Round Flange Connector Type

RF: Round Flange
MDD: 2 drawers
MT: 3 drawers
MF:4 drawers

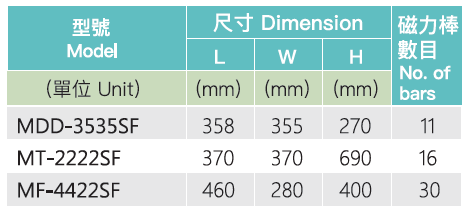

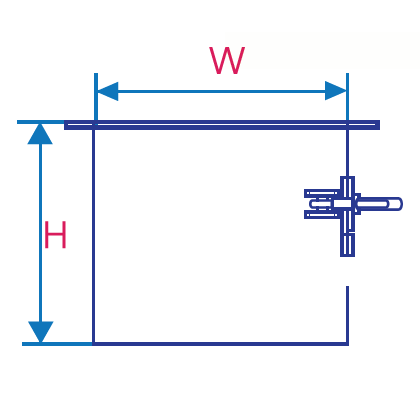

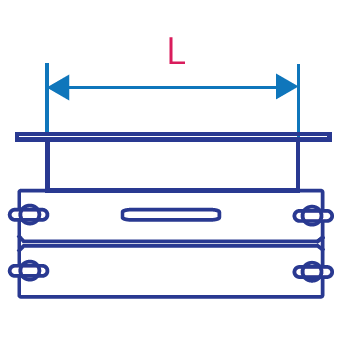

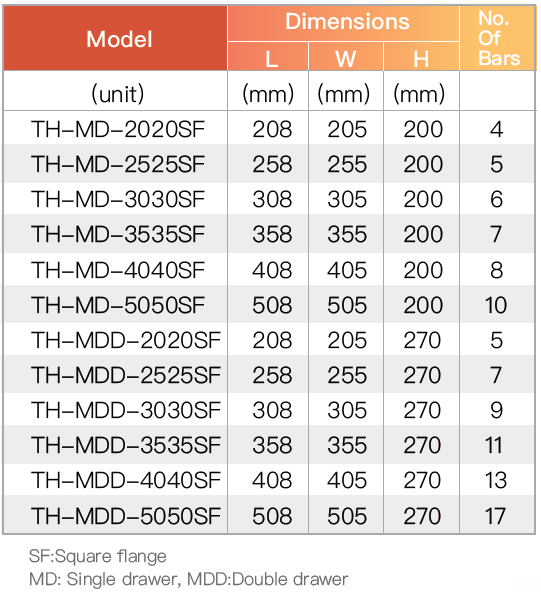

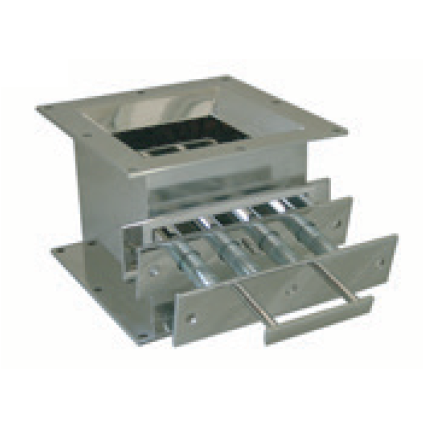

Square Flange Connector Type

RF: Round Flange
MDD: 2 drawers
MT: 3 drawers
MF:4 drawers
