Magnetic Grate THG

Magnetic grate is constructed with a row of magnetic bars which are fixed by frames in various shapes. It can be square, rectangle, round, oval, triangle, rhombus or irregular polygon to suit for different positions.
Magnetic grates are designed for product purity of free flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries and so on. These units are easily installed on any hopper or floor opening, chute or duct. It makes product stream free flowing products to come in directly contact with the grate. When anything containing iron substances passes through the framework, iron particles are attracted to the bar magnets by magnetic fields. By this solution, your equipment and facilities will be protected, while your products will be safe for consumption.

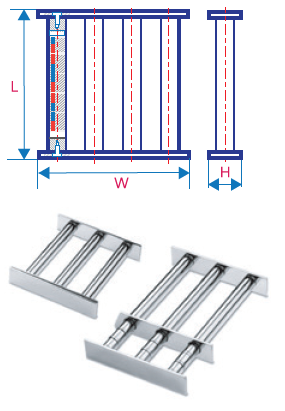

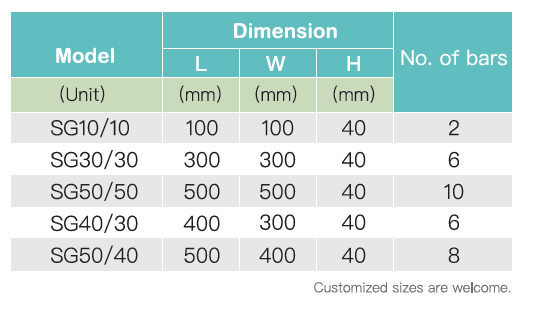

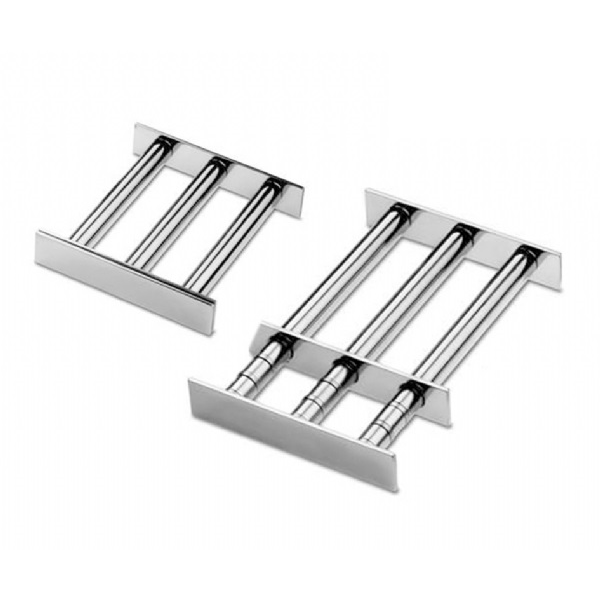

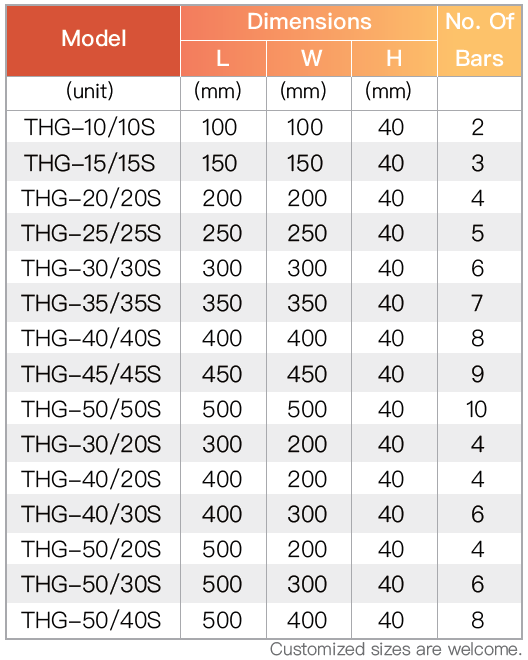

Square Shape Magnetic Grate

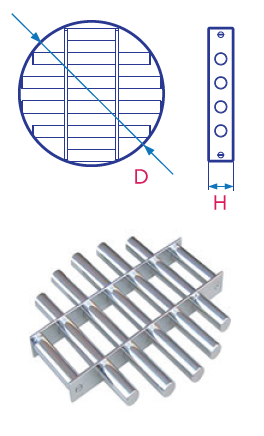

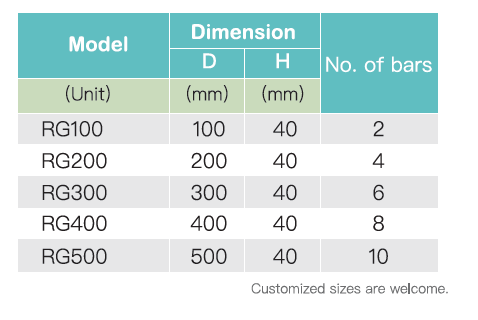

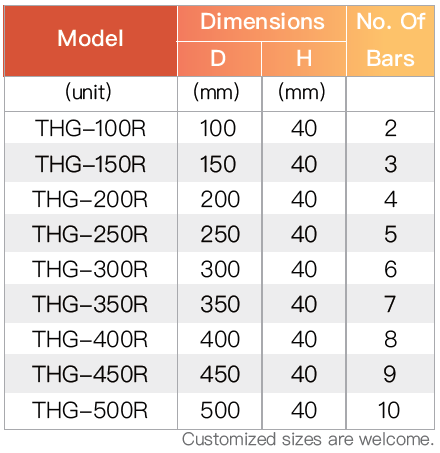

Round Shape Magnetic Grate
